S050QWS115EN is 5 inch tft lcd display module with MIPI interface and IPS All o’clock viewing angle screen. Customization is available. The shape is a square with resolution 600*600. Outline dimension is 95.08 x 99.50 mm, thickness is 2.7 mm. Active area is 89.28 x 89.28 mm. This lcd display is coming out with 40 pins definition. Working temperature is -20 to +70℃, storage temperature is -30 to +80℃.

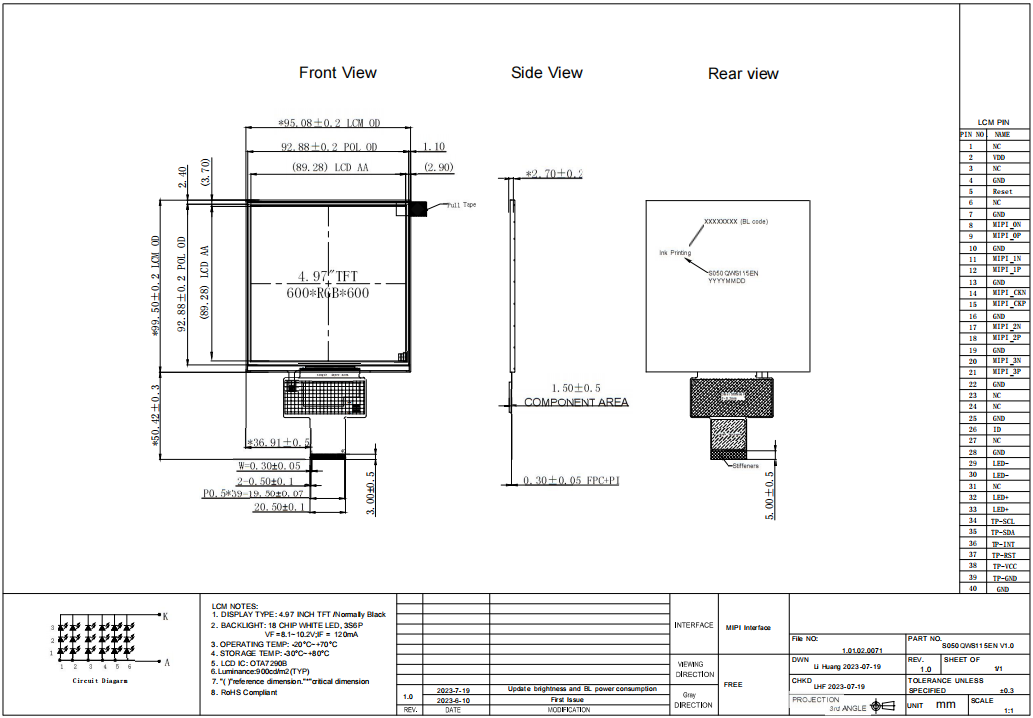

DRAWING
SPECIFICATIONS
| General Specification | |
|---|---|
| Part No. | S050QWS115EN |
| LCM Outline Dimension(mm) | 95.08 (H) x 99.50 (V) x 2.70 (D) |
| Active Area(mm) | 89.28 (H) x 89.28 (V) |
| Number of Pixel(pixels) | 600 (H) RGB x 600 (V) |
| Touch panel | Without |
| Operating temperature(°C) | -20 ~ 70℃ |
| Storage temperature(°C) | -30 ~ 80℃ |
| Interface | MIPI |
| Driver IC | OTA7290B |
| Display Mode | Normally Black |
| Pixel Pitch | 0.1488 (H) x 0.1488 (V) |
| Viewing Direction | All o'clock |
| Display Colors | 16.7M |
| Pins Description | ||
|---|---|---|
| PIN NO. | Symbol | Description |
| 1 | NC | No connection |
| 2 | VDD | Power supply |
| 3 | NC | No connection |
| 4 | GND | Ground |
| 5 | RESET | Global reset pin |
| 6 | NC | No connection |
| 7 | GND | Ground |
| 8 | MIPI_ON | MIPI Negative data signal(-) |
| 9 | MIPI_OP | MIPI Positive data signal(+) |
| 10 | GND | Ground |
| 11 | MIPI_1N | MIPI Negative data signal(-) |
| 12 | MIPI_1P | MIPI Positive data signal(+) |
| 13 | GND | Ground |
| 14 | MIPI_CKN | MIPI Negative clock signal(-) |
| 15 | MIPI_CKP | MIPI Positive clock signal(+) |
| 16 | GND | Ground |
| 17 | MIPI_2N | MIPI Negative data signal(-) |
| 18 | MIPI_2P | MIPI Positive data signal(+) |
| 19 | GND | Ground |
| 20 | MIPI3N | MIPI Negative data signal(-) |
| 21 | MIPI_3P | MIPI Positive data signal(+) |
| 22 | GND | Ground |
| 23-24 | NC | No connection |
| 25 | GND | Ground |
| 26 | ID | LCM ID |
| 27 | NC | No connection |
| 28 | GND | Ground |
| 29-30 | LED- | Power for LED backlight (Cathode) |
| 31 | NC | No connection |
| 32-33 | LED+ | Power for LED backlight (Anode) |
| 34 | TP_SCL(NC) | No connection |
| 35 | TP_SDA(NC) | No connection |
| 36 | TP_INT(NC) | No connection |
| 37 | TP_RST(NC) | No connection |
| 38 | TP_VCC(NC) | No connection |
| 39 | TP_GND(NC) | No connection |
| 40 | GND | Ground |
