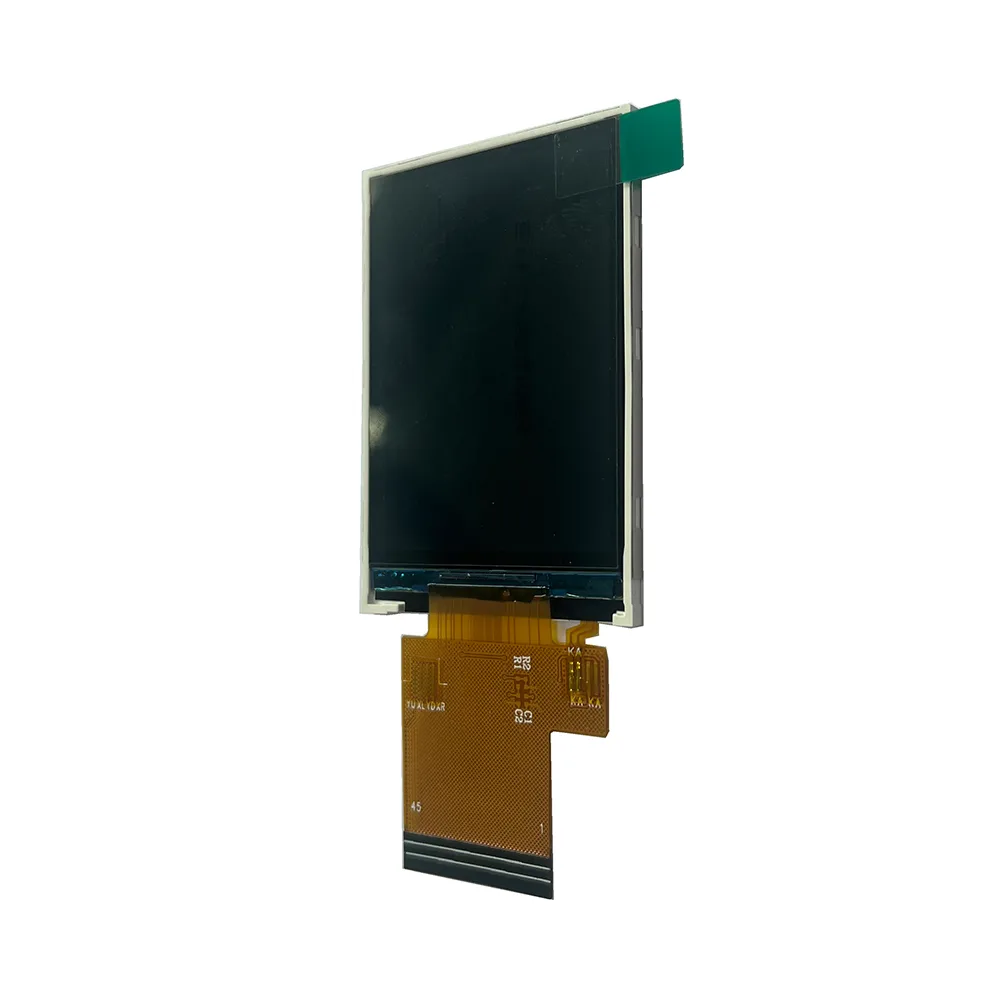

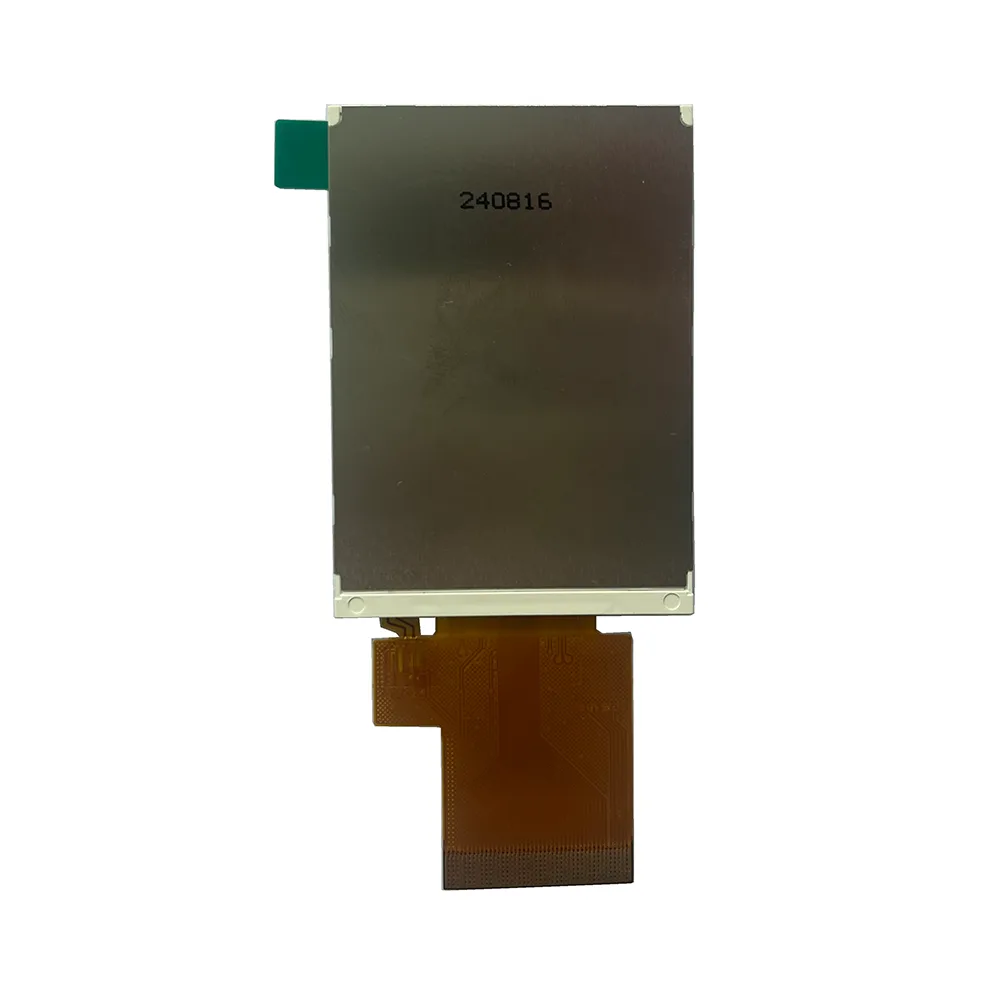

W240TRQVC001-A is 2.4 inch Transflective lcd display module with MCU/SPI/RGB interface and ALL o’clock viewing angle screen. Customization is available. The shape is a rectangle with resolution 240*320. Outline dimension is 42.72*60.26 mm, thickness is 2.20 mm. Active area is 36.72(H)*48.96(V) mm. This lcd display is coming out with 45 pins definition. Working temperature is -20 to +70℃, storage temperature is -30 to +80℃.

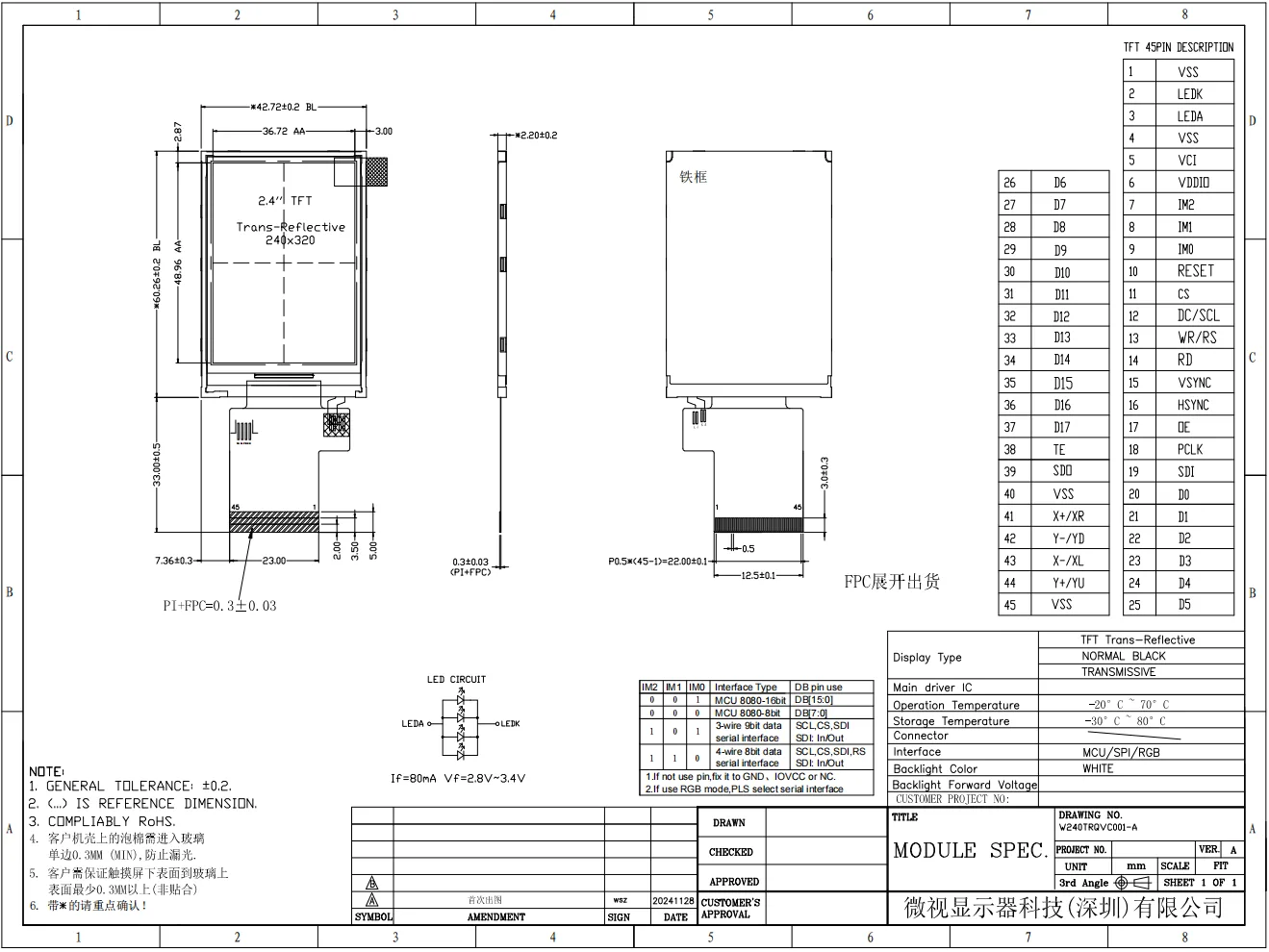

DRAWING
SPECIFICATIONS
| Item | Specification | Unit |
|---|---|---|
| Part No. | W240TRQVC001-A | - |
| Display Mode | Normally Black, Trans-Reflective | - |
| Display Technology | α-Si TFT active matrix | - |
| Outline Dimension | 42.72(H) X 60.26(V) X 2.20(T) | mm |
| Dimensions with touch screen | 42.72(H) X 60.26(V) X 3.30(T) | mm |
| Active Area | 36.72(H) X 48.96(V) | mm |
| Resolution | 240X(RGB)X320 | dots |
| Pixel Pitch | 0.153(H) × 0.153(V) | mm |
| Pixel Configuration | RGB Stripe | - |
| Backlight | White LED | - |
| LCD Driver IC | - | - |
| Viewing Direction | FREE o’clock | - |
| Module lifetime(Hours) | 50000 | H |
| Interface NO. | Symbol | Description |
|---|---|---|
| 1 | VSS | POWER GROUND. |
| 2 | LEDK | Backlight cathode. |
| 3 | LEDA | Backlight anode. |
| 4 | VSS | POWER GROUND. |
| 5 | VCI | Analog power supply,2.8V~3.3V. |
| 6 | VDDIO | Analog power supply,1.65V~3.3V. |
| 7-9 | IM2-IM0 | The MCU interface mode select. |
| 10 | RESET | Reset pin. |
| 11 | CS | Chip select signal. |
| 12 | DC/SCL | Display data/command selection pin in parallel interface.In serial interface it used as clock signal. |
| 13 | WR/RS | Write signal in parallel interface.In serial interface it used as Display data/command |
| 14 | RD | Read signal in parallel interface. |
| 15 | VSYNC | Frame synchronizing signal for RGB interface operation. |
| 16 | HSYNC | Line synchronizing signal for RGB interface operation. |
| 17 | DE | Data enable siganl in RGB interface operation. |
| 18 | PCLK | Dot clock signal for RGB interface operation. |
| 19 | SDI | Data input/output in serial interface. |
| 20-37 | D0-D17 | Data bus. |
| 38 | TE | Tearing effect signal is used to synchronize MCU to frame memory writing. |
| 39 | SDO | SPI interface output pin |
| 40 | VSS | POWER GROUND. |
| 41 | XR | Resistor touch screen XR pin (It doesn't need it without a touch screen) |
| 42 | YD | Resistor touch screen YD pin (It doesn't need it without a touch screen) |
| 43 | XL | Resistor touch screen XL pin(It doesn't need it without a touch screen) |
| 44 | YU | Resistor touch screen YU pin (It doesn't need it without a touch screen) |
| 45 | VSS | POWER GROUND. |
